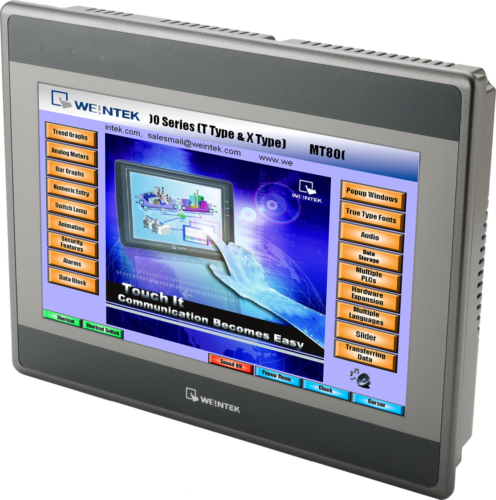

Weintek HMI 10 color TFT MT8102iE
$425.00
Free worries, easy return
30 Days Returns Policy, 1 year warranty.
Delivery time
Usually ship in 5 days
Condition: Brand New Factory Sealed - Original
Shipping Worldwide
Free shipping By China Post in 12-40 days
UPS/DHL Estimated to be delivered in 7-12 days.
Covid-19 Shipping Delay Notice

Weintek HMI 10 color TFT MT8102iE compatible with Allen Bradley, Siemens & more
Product Spec
Model | MT8102iEU |
Display | 10.1” TFT |
Resolution | 1024 x 600 |
Brightness (cd/ ㎡ ) | 350 |
Contrast Ratio | 500: 1 |
Backlight Type | LED |
Backlight Life Time | >50,000 hrs. |
Colours | 16.7M |
LCD Viewing Angle (T/B/L/R) | 60/60/70/70 |
Pixel Pitch (mm) | 0.2175(H) x 0.2088(V) |
Type | 4-wire Resistive Type |
Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
Flash | 128 MB |
RAM | 128 MB |
Processor | 32-bit RISC 600MHz |
USB Host | USB 2.0 x 1 |
Ethernet | 10/100 Base-T x 1 |
WiFi | N/A |
COM Port | Con.A: COM1 RS-485 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W/4W*1 Con.B: COM1 RS-232 / COM3 RS-232*2 |
RS-485 Dual Isolation | N/A |
RTC | Built-in |
Input Power | 24±20%VDC |
Power Isolation | Built-in |
Power Consumption | 600mA@24VDC |
Voltage Resistance | 500VAC (1 min.) |
Isolation Resistance | Exceed 50MΩ at 500VDC |
Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
PCB Coating | Yes |
Enclosure | Plastic |
Dimensions WxHxD | 271 x 213 x 36.4 mm |
Panel Cutout | 260 x 202 mm |
Weight | Approx. 1 kg |
Mount | Panel mount |
Protection Structure | UL Type 4X (indoor use only)*3/ NEMA4 / IP65 Compliant Front Panel |
Storage Temperature | -20° ~ 60° C (-4° ~ 140° F) |
Operating Temperature | 0° ~ 50° C (32° ~ 122° F) |
Relative Humidity | 10% ~ 90% (non-condensing) |
CE | CE marked |
UL | cULus Listed (UL 61010-2-201) |
ATEX | N/A |
Software | EasyBuilder Pro EasyAccess 2.0 (Optional) |
*1 MT8102iE: COM3 RS-485 4W will not be available when COM1 RS-485 2W is used. ( Please use EasyBuilder Pro V6.01.01 or later versions.) | |
*2 MT8102iE: Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used. |
Weight (kg): 1.3000
Country of Origin : China
HS Code: 85312040
